| Quantity: | |
|---|---|
65A F7 V2
| Net weight of flying tower | 23.5g |
| Packing weight | 71.5g |
| Packing size | 64*64*35mm |
| Flight control specifications | ESC parameters | |||
Flight control size | 36x36mm | ESC size: | 40mm*43mm | |
Flight control net weight | 8.5g | ESC net weight: | 12.5g | |
Installation hole distance | 30.5*30.5mm φ4mm | Fixed hole spacing: | 30.5mm*30.5mm Φ4mm | |
Processor | STM32F722RET6 | Continuous current: | 65A | |
Gyroscope | ICM42688 dual gyroscope | Maximum current: | 75A (sustainable for 10S) | |
B E C | 5V/3A ; 10V/2.5A | Input voltage: | 2S-8S | |
| Memory | 16MB | Current ratio: | 160 | |
| Input voltage | 2S—6S | Supports image transmission of ESC telemetry data | ||
| Firmware | HAKRCF722V2 | Parameter adjustment software | BLHeliSuite32Activator_32.9.0.3 | |
| Uart serial port | 6 | Drive signal support | PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600 | |
Comes with four programmable colorful LEDs | Firmware version | HAKRC AT4G_Multi_32.9Hex | ||
| Comes with 6P air terminal | ||||

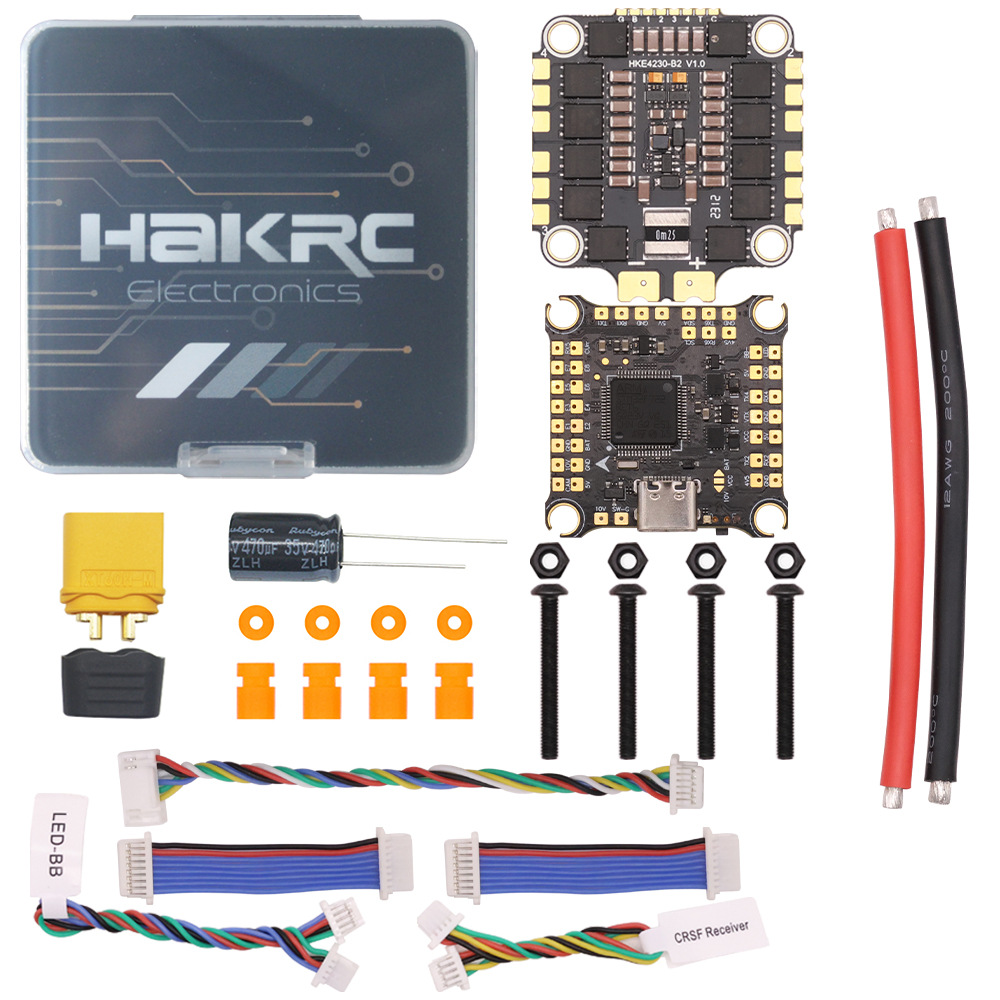

Parts List
M3 orange shock absorbing ball x8, 8p wire x2,
LED4P wire x1,
CRSF Receiver4P line x1,
DJI6P cable x1,
Capacitor (35v470uf) x1,
XT60 power head x1,
Red and black power cord x1,
(M3x25mm screw)x4,
Black nuts x4,
DJI O3 Air Unit three-in-one cable x1,
Instruction x1
