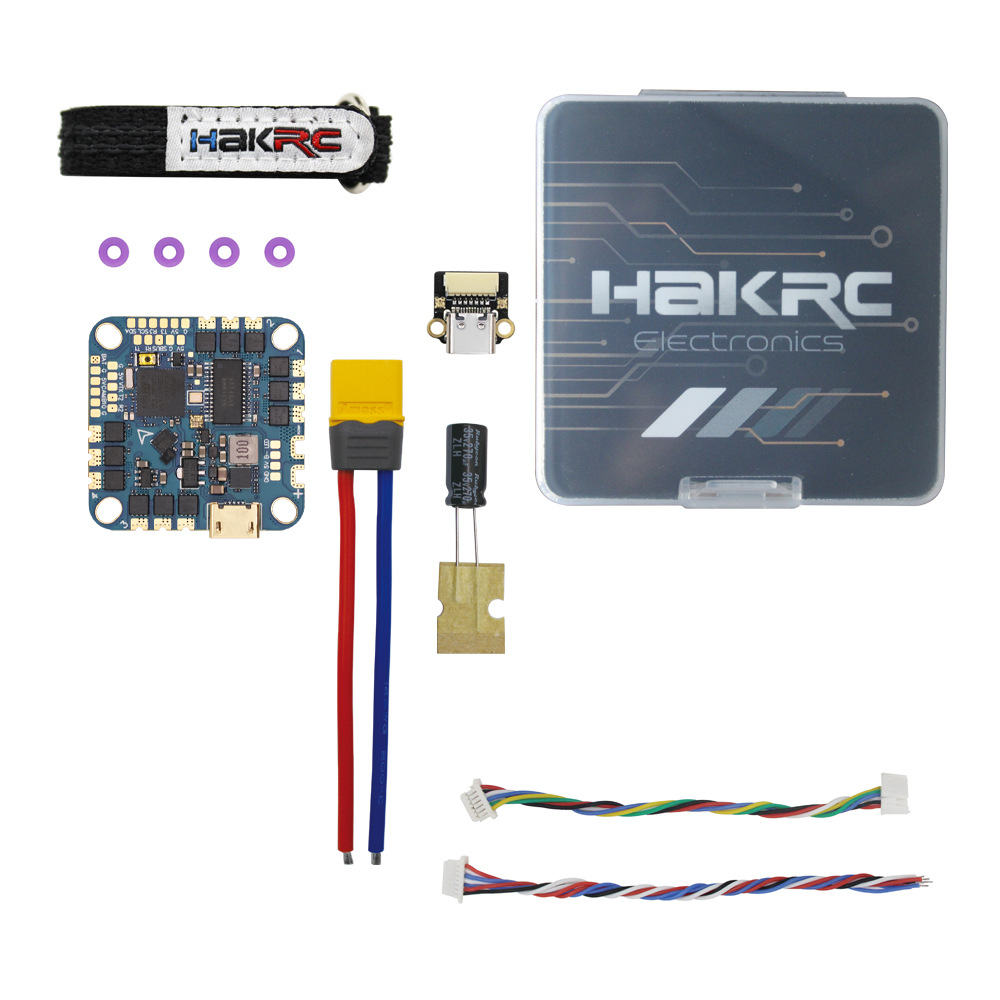

F411 2-5S
Ø Product features:
1. The PCB uses high-end 8-layer 2oZ thickened copper skin, applies high-end resin plugged hole PCB production technology, and has a double pad design, which has stronger over-current capability and good heat dissipation.
2. MOS adopts imported 30V high current resistance MOS, which has long life and strong load capacity.
3. Use industrial grade LDO, resistant to high temperatures.
4. Use high-quality Japanese Murata capacitors with strong filtering performance.
5. LED: Comes with programmable LED
| Product specifications | ||||
| Flight control parameters | ||||
Size: | 32* 32mm (25.5mm-26.5mm mounting hole) | CPU: | STM32F411CEU6 | |
Packing size: | 64*64*35mm | IMU: | ICM42688 | |
Product net weight: | 8.5g | OSD: | AT7456E | |
Packing weight: | 50g | Barometer: | integrated | |
ESC parameters: | Black box: | 16M | ||
Input voltage | 2S-5S Lipo | BEC: | 5V/2A | |
| Continuous current: | 20A | Sensor: | Built-in current sensor | |
| Galvanometer scale value: | 210 | Firmware version: | HAKRCF411D | |
| Peak current: | 25A | Receiver: | Frsky/ Futaba/ Flysky/ TBS Crossfire/ DSMX:DSM2 receiver | |
| Firmware version: | BLHELI_S (G-H-30) | |||
| Protocol support: | PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600 | |||
