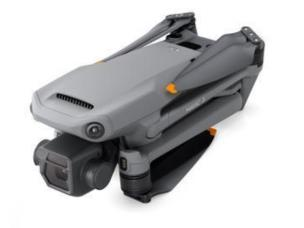

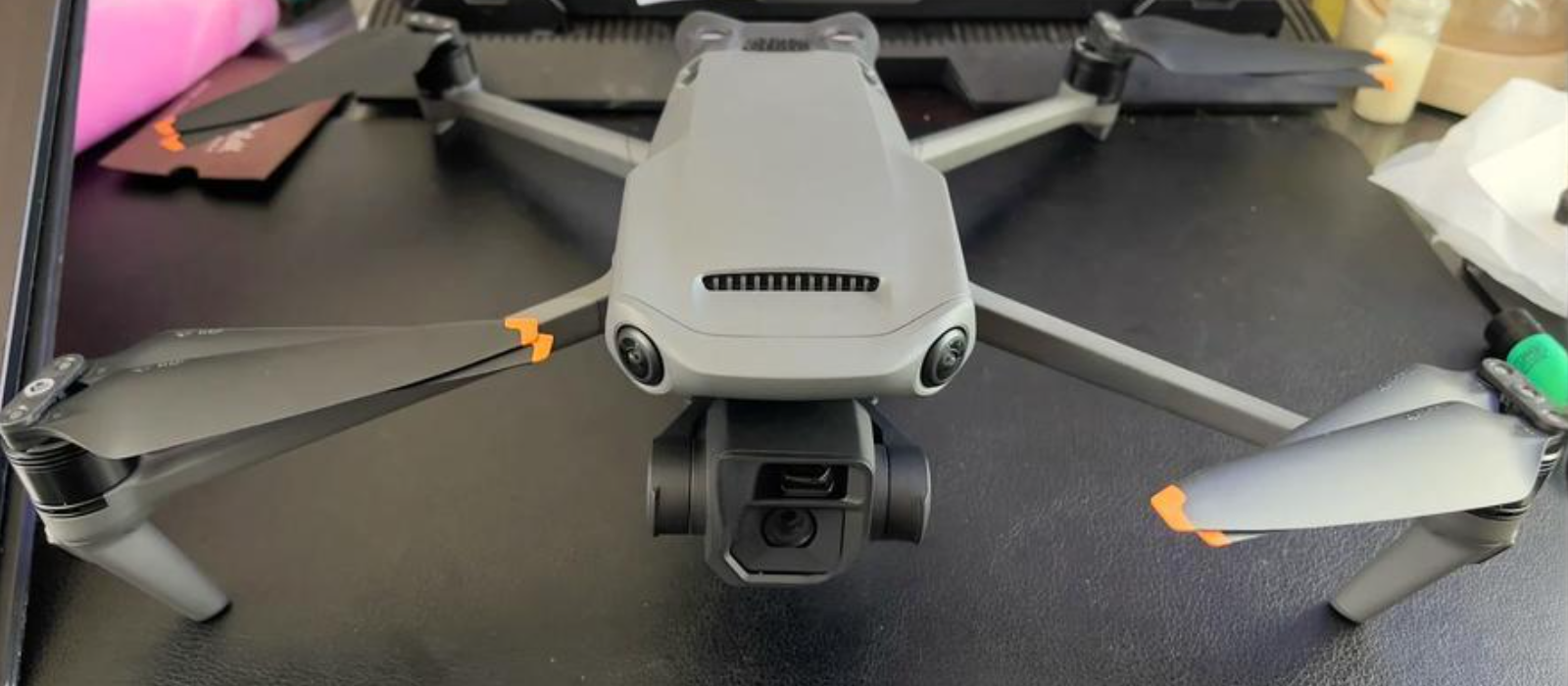

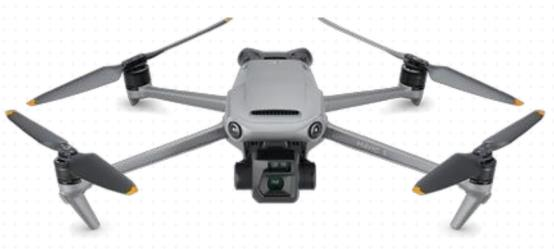

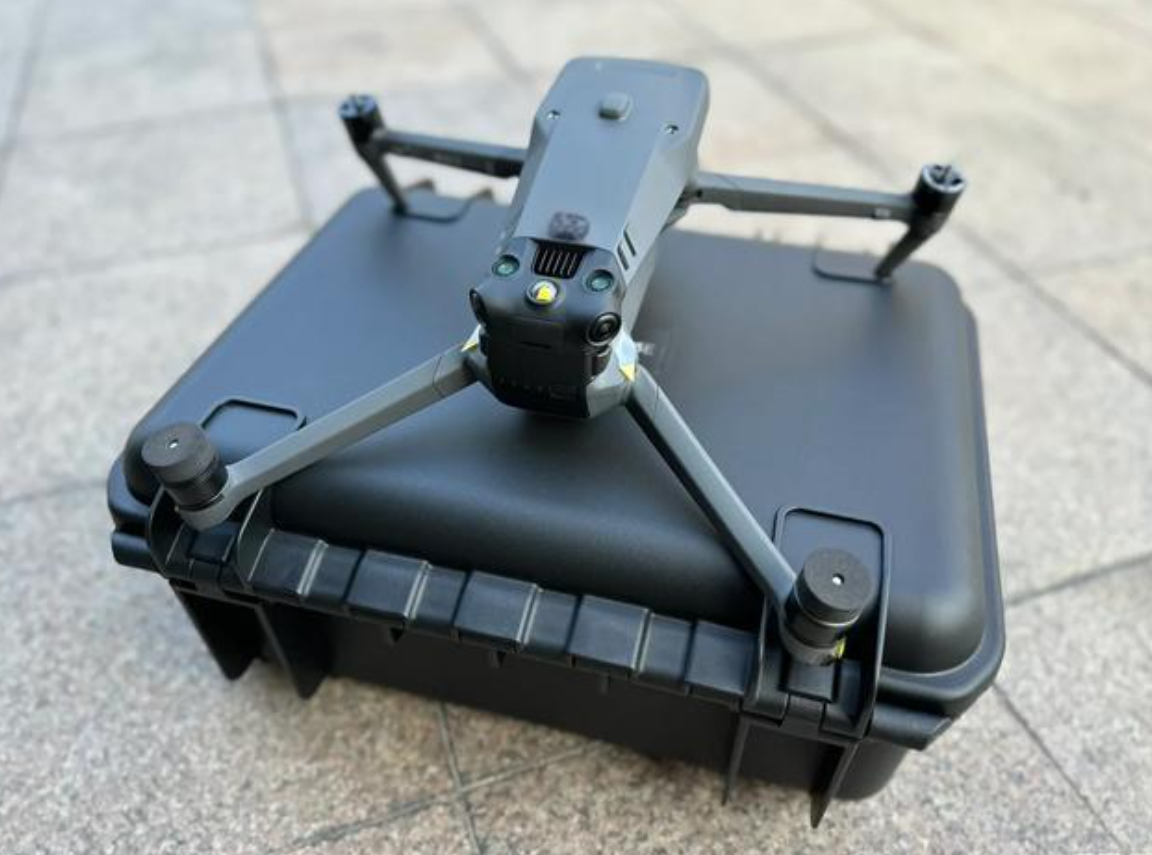

Lightweight, Long-Endurance, Small, And Portable Quadcopter Drone

Lightweight Long-Endurance Portable Quadcopter Drones for Security, Inspection, Rescue Applications

Core Aircraft Parameters

• Takeoff weight: 910 g

• Dimensions: Folded (L 180mm, W 94mm, H 64mm); Unfolded (L 347mm, W 290mm,  H 107mm)

• Power system: Maximum ascent speed 5m/s; Maximum descent speed 3m/s;  Maximum horizontal flight speed (sea level, no wind): 24m/s (Sports Mode), 16m/s  (Normal Mode), 10m/s (Slow Flight Mode); Maximum takeoff altitude: 6000 m;  Maximum wind resistance speed: 12m/s

• Maximum flight time: 45 minutes

• Maximum hovering time: 40 minutes

• Maximum effective signal range (no interference, no obstruction): 15 km (FCC), 8 km  (CE/SRRC/MIC) (One-way non-return communication range in open outdoor  environments, refer to the return prompt in APEX Fly APP for actual use)

• Maximum tilt angle: 35°

• Operating ambient temperature: -4℃ to 40℃

• Satellite navigation system: GPS + GLONASS + BDS

• Hovering accuracy: Vertical ±0.1 m (normal visual positioning); Horizontal ±0.1 m  (normal visual positioning), ±0.2 m (normal high-precision positioning system) • Onboard memory: None

Thermal Imaging Parameters

• Sensor type: Uncooled Vanadium Oxide (VOx)

• Frame rate: ≤25Hz

• Lens: FOV40°, aperture F1.2

• Sensitivity: ≤50mk@25℃, F#1.0

• Temperature measurement range: -15℃ to 150℃ (High Gain Mode), 50℃ to 550℃  (Low Gain Mode)

• Color palettes: White Hot / Pseudo Color

• Photo format: JPEG, single shot resolution 1280x720

• Video parameters: Resolution 640x480@25fps, bit rate 10Mbps, format MP4 (H265)

• Digital zoom: 4x

• Infrared temperature measurement accuracy: ±2℃ or ±2%

Wide-Angle Camera Parameters

• Image sensor: 1/2 CMOS, effective pixels 48 million

• Lens: Field of view 80°, equivalent focal length 25 mm, aperture F1.7, focus 10 m to  infinity

• ISO range: 50 to 6400 (both for video/photo)

• Shutter speed: Electronic shutter 2s to 1/8000s

• Maximum photo size: 5700x3200

• Shooting modes & parameters: Single shot 18 million pixels, low-light smart shooting  18 million pixels

• Image format: JPEG

• Video resolution: H.265 4K (3840x2160@25fps), FHD (1920x1080@50fps)

• Video format: MP4 (H265), maximum bit rate 40Mbps (for both 4K/FHD)

• Supported file system: FAT32

• Color mode & sampling method: Normal

• Digital zoom: 56x

Gimbal Parameters

• Stabilization system: 3-axis mechanical gimbal (pitch, roll, yaw)

• Structural design range: Pitch -135° to 45°, Roll -45° to 45°, Yaw -80° to 80°

• Controllable rotation range: Pitch -90° to 35°, Yaw -5° to 5°

• Maximum control rotation speed (pitch): 70°/s

• Angular jitter: ±0.003° (hovering with no wind), ±0.005° (Normal Gear), ±0.008°  (Sports Gear)

Perception System Parameters

• System type: Omnidirectional binocular vision system, supplemented by optical flow  obstacle avoidance at the bottom of the fuselage

• Forward view: Ranging 0.5-20 m, detectable 0.5-200 m, effective obstacle avoidance  speed ≤15m/s, field of view: horizontal 90°, vertical 103°

• Rear view: Ranging 0.5-16 m, effective obstacle avoidance speed ≤12m/s, field of  view: horizontal 90°, vertical 103°

• Side view: Ranging 0.5-25 m, effective obstacle avoidance speed ≤15m/s, field of  view: horizontal 90°, vertical 85°

• Top view: Ranging 0.2-10 m, effective obstacle avoidance speed ≤6m/s, field of view:  front-rear 100°, left-right 90°

• Bottom view: Ranging 0.3-18 m, effective obstacle avoidance speed ≤6m/s, field of  view: front-rear 130°, left-right 160°

• Effective operating environment: Forward/rearward views require surfaces with rich  texture and sufficient illumination (＞15lux, normal indoor fluorescent lamp lighting  environment)

Image Transmission Parameters

• Image transmission solution: Wi-Fi 6.0

• Real-time image transmission quality: 1080p for both remote controller/relay

• Operating frequency band: 5.725 GHz to 5.850 GHz

• Maximum effective signal range (no interference, no obstruction): 15 km (FCC), 8 km  (CE/SRRC/MIC) (same notes as core aircraft parameters)

• Minimum latency: 130 ms

• Antenna: Dual antennas, dual transmit and dual receive

Battery Parameters

• Capacity: 5200 mAh

• Weight: 342 g

• Nominal voltage: 14.8 V

• Charge limit voltage: 17 V

• Battery type: Li-ion 4S

• Energy: 77 Wh

• Charging ambient temperature: 5℃ to 40℃

• Charging time: Approximately 120 minutes

Charger Parameters

• Input: 60W charger

• Output: 17 V, 3 A (60W charger)

Standard Accessories

• Havic aircraft ×1

• Havic series 6.0-inch screen remote controller ×1 (Supported languages: Chinese,  English, Russian, Belarusian)

• Havic flight battery ×2

• Propellers (pair) ×4

• Portable charger ×1

• USB 3.0 Type-C data cable ×1
