S1400-P33
S1400-P33 is a self-developed TDD wireless transmission equipment. The product has the functions of real-time interference detection, adaptive frequency selection, adaptive stream, and automatic retransmission, automatic power control, which greatly improves the ability of anti-multipath and anti-interference. It has the characteristics of high reliability, good stability, and low delay.
This product is suitable for firefighting, inspection, monitoring and other scenarios. In the case of good air-to-ground visibility, the transmission distance is up to 30KM+.

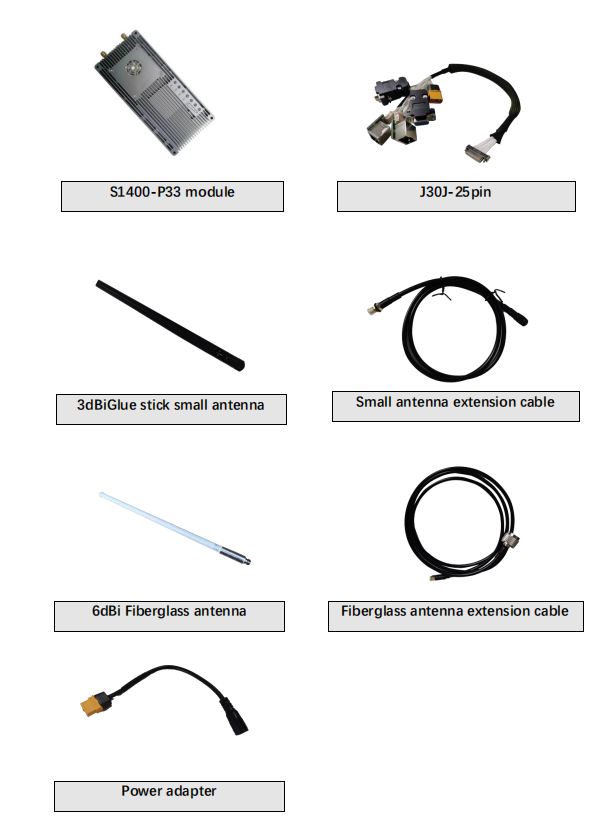

S1400-P33 Product list (2) | |||
No | Product | Instructions | Num |
1 | S1400-P33 | TDD wireless transmission radio | 2 |

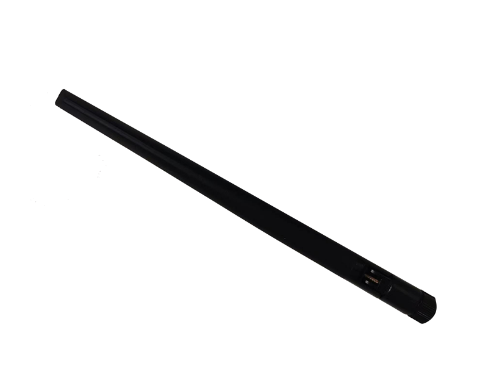

2 | Little glue stick antenna | Gain: 2.5dBi | 2 |

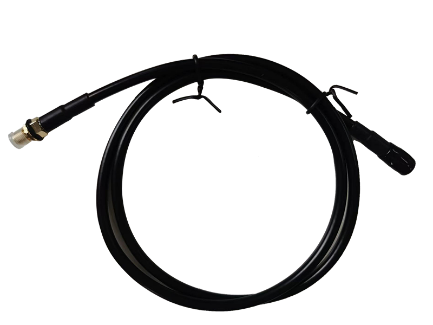

3 | Small antenna extension cable | 1m cable | 2 |
4 | Fiberglass antenna | Gain: 6dBi | 2 |
5 | Fiberglass antenna extension cable | 3 m cable | 2 |

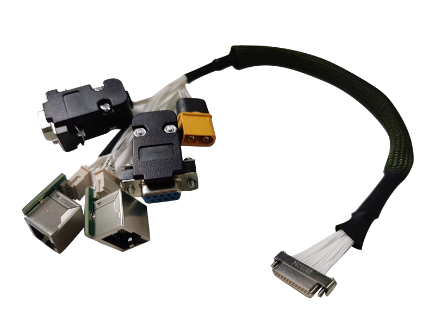

4 | J30J-25pin | 30cm cable | 2 |
5 | Power adapter | Auxiliary accessories | 1 |
3 Product connection

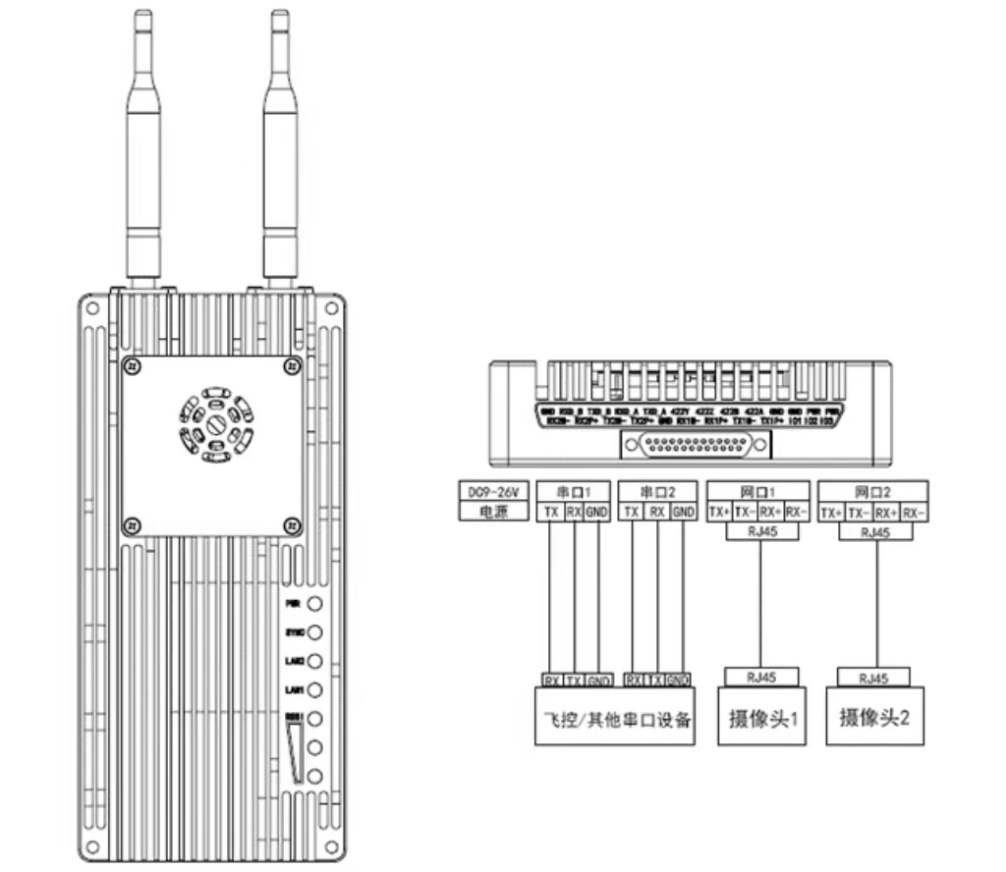

3.1 Connection diagram(Air)
Step1: Connect antenna The distance between the two antennas must be greater than 15cm.The tail is connected to the J30J-25PIN.
Step2: Connect serial port It can be connected to flight control equipment or other serial devices. Note the serial port level.
Step3: Connect network port A single or dual network port will be used to connect the camera.
Step4: Connect power Power the equipment DC9~26V, typical value: +12V.
Step5: SYNC light After both the master and slave devices are powered on, check whether the SYNC indicator is steady on (synchronous).
1. Ensure that the correct voltage is used to power the device. 12V/24V is recommended.
2. Install the antenna before powering on the device to avoid circuit damage. Place the two antennas of the device at a distance greater than 15cm away from large metal structures to avoid communication obstruction caused by the preceding reasons.
3. Make sure that other electronic devices are not placed too close to the antenna. To avoid affecting the ground noise of the device.
4. Pull distance as far as possible to make the ground end antenna without obstacles. The height of the ground antenna is greater than 3 meters.
5. Before use, please ensure that all the connections are tight and reliable, and all the components work normally.
6. Please do not disassemble or modify, otherwise there will be no warranty. If the failure occurs during installation or testing. To solve the problem, please contact the original technical support.
