| Quantity: | |
|---|---|
Describe:

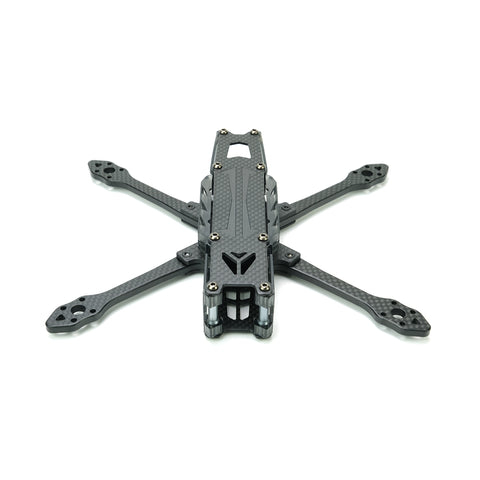

| Frame Model: | SPEED 5" |
| Frame Wheelbase: | 215mm |
| StackInstallation Size: | 30.5mm*30.5mm/20mm*20mm |
| VTX: | 20mm*20mm(Analog/VISTA) |
| Camera Specifications: | 19mm/20mm |
| Motor Specifications: | 16mm*16mm |
| Fit Blade Specifications: | 4.9-5.1" |
| Roof Thickness: | 2mm |
| Baseplate Thickness: | 2mm |
| Center Plate Thickness: | 3mm |
| Dimension:2 | 200mm*165mm*32mm |
| Weight: | 135g |
Product features:
Ultra-light injection molded colorful protective case
Air duct design, improve the heat dissipation effect

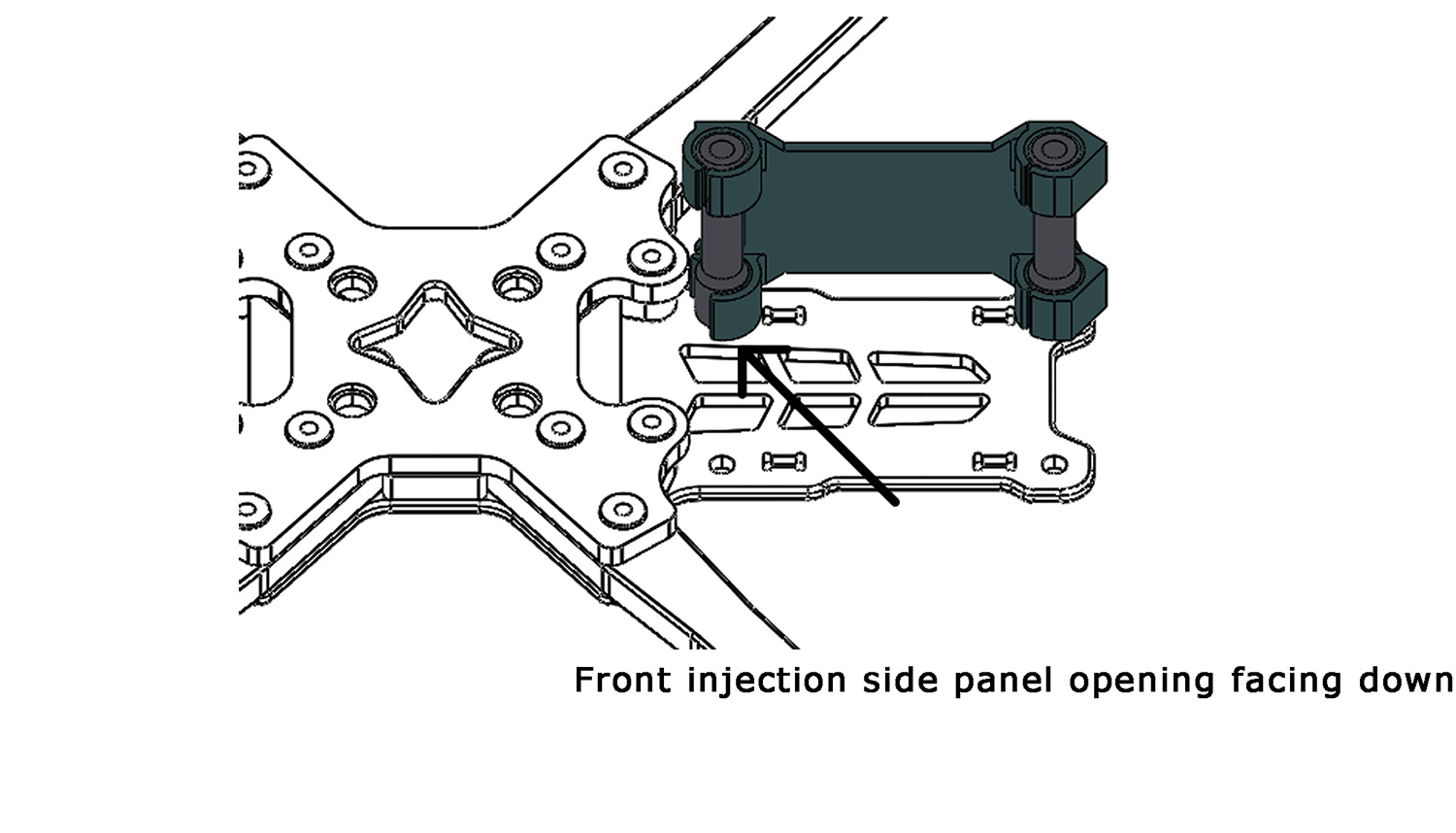

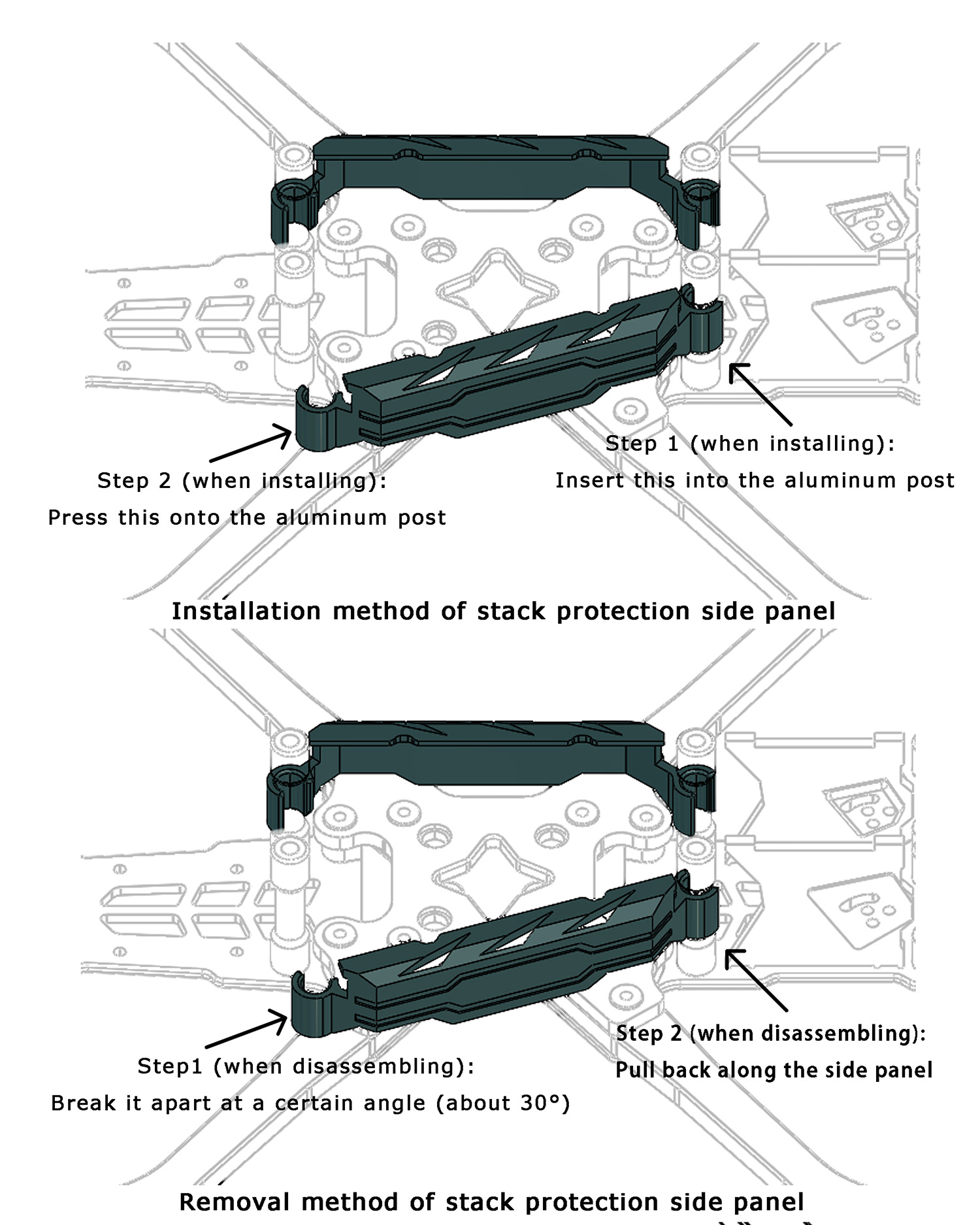

Convenient parameter adjustment side panel, one-key removal
Innovative TPU shock absorption structure
High strength carbon plate
Multi-layer fuel injection + chamfering design
product list
Frame bag:
2mm Roof*1
2mm Bottom Plate*1
5mm Arm*5
3mm Center Plate*1
2.5mm Arm limit plate*1

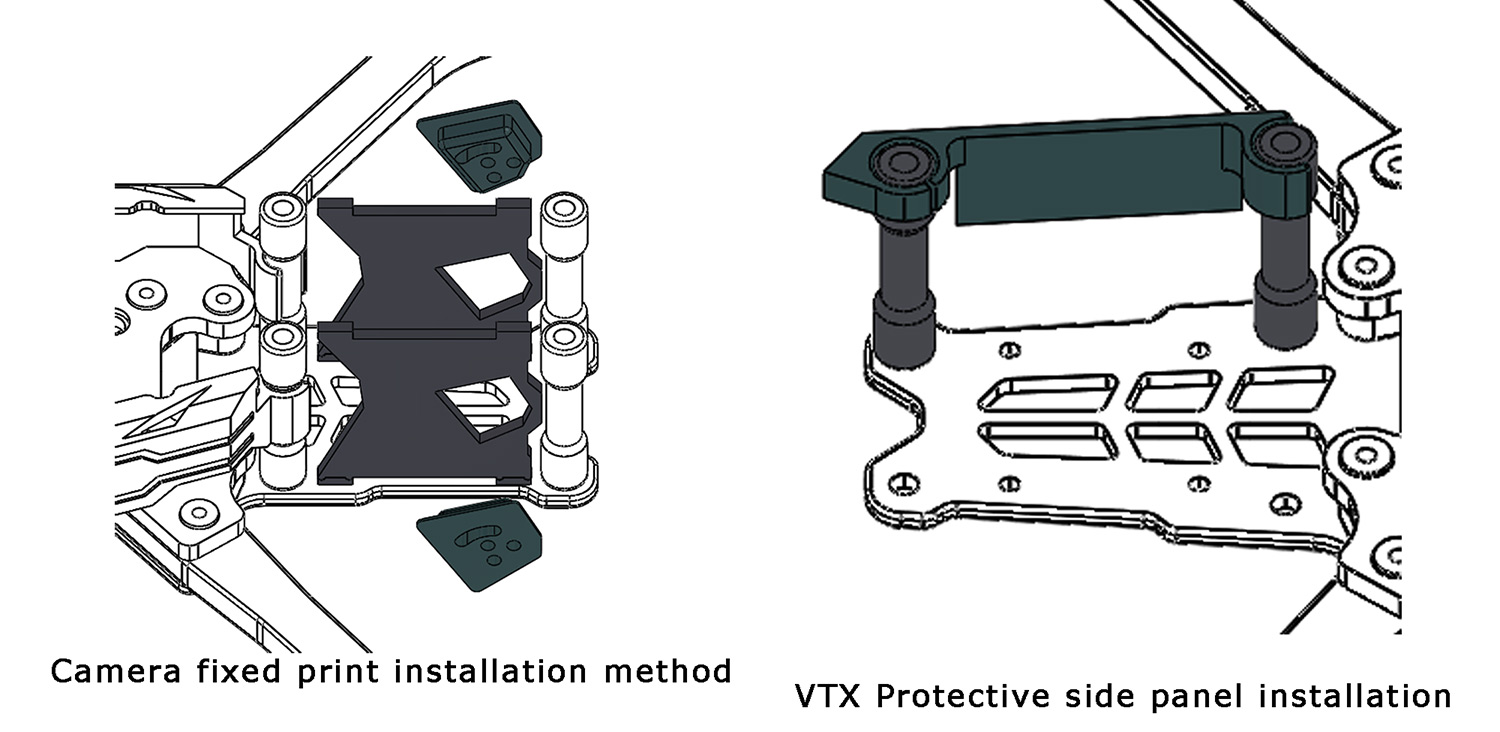

2mm Camera fixed side panel*2
Screw Pack:
M3*28Aluminum Column*8
M5*20 Bolt*1
M5 Dome Head Nut*1
M3*28 Pan Head Screws*4
M2 Nut*4
M2*16 Pan Head Black ickel Plated Screws*4
M3*8 Pan Head Black Nickel Plated Screws*12
M3*6 Pan Head Black Nickel Plated Screws*14
M3*10 Pan Head Black Nickel Plated Screws*16
3D Printing Accessories:
GPS mount*1
Arm Limiter Plate Stabilizer*1
Universal GoPro Mount*1
Camera Mount*2
VTX Antenna Base*1
