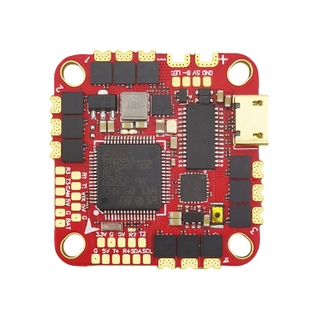

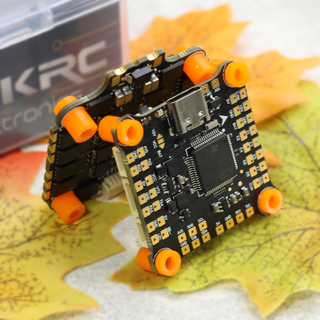

HAKRC 65A F7 V2 fly tower

Product features:

1. The PCB uses high-end 8-layer 2oZ thickened copper skin, applies high-end resin plugged hole PCB production technology, and has a double pad design, which has stronger over-current capability and good heat dissipation.

2. MOS adopts imported 40V high current resistance MOS, which has long life and strong load capacity.

Storm 32-bit lightweight three-axis brushless gimbal

Motor: 1 hollow shaft motor 2805 160KV

Hollow shaft motor 2206 160KV 2 Storm32-bit control boards, main control chip STM32F103; PTZ parameters: voltage 11.1~16.8V (3S/4S lithium battery); current 350mA; total weight 308G; net weight 180G, size 8*8*8 ~11(cm)





Optional power connectors: JST and XH



Accessories: some straps and screws

The tilt camera adopts a one-piece structure. Through excellent shape structure design and advanced manufacturing technology, a more professional five-lens camera is created. It is equipped with a professional fixed-focus surveying and mapping lens as standard. The total pixels are up to 120 million, and the housing is tilted forward by 8°. The fixed inclination angle makes the attitude data more accurate;

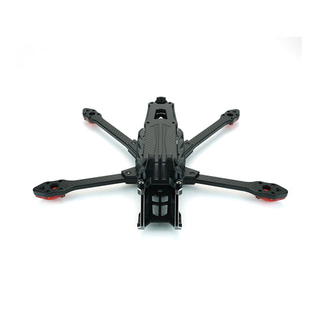

This drone frame is equipped with an ultra-light injection molded protective cover, which can improve heat dissipation and has a one click disassembly function





The front/rear power cord of this drone frame can meet various battery placement needs, and is equipped with a metal CNC camera bracket
